Slew drives

EP7 Series

The EP7 series slew drives by Ever-Power Industry Co., Ltd enjoy following features:

Output torque Range: 1000 ... 80000 N.m Gear Ratios: i=3,3 ... 3000

Support: slew support (with Flange mounted) Electric Brake:DC and AC type

Output shaft: splined or with integral pinion. Output shafts supported by heavy duty capacity bearings

Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors, IEC electric motors

Hydraulic motor options: Pressure relief valve, Over center valve, parking brake on request

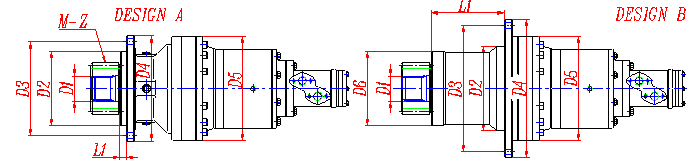

Type	Dimensions										Design
Type	D1 D2 D3		D2	D3	D4	D5	D6	L1	M	Z	Design
EP 700L 1A	40×36 DIN 5482	19Z× 2m ×30P GB3478.1	150	195	220	185	--	31	Module and number of teeth of pinion please ask		A
EP 701L 1A	40×36 DIN 5482	19Z× 2m ×30P GB3478.1	150	195	220	185	--	31			A
EP 703L 2A	58×53 DIN 5482	28Z× 2m ×30P GB3478.1	175	245	272	245	--	41			A
EP 705L 2A	58×53 DIN 5482	28Z× 2m ×30P GB3478.1	175	245	272	245	--	41			A
EP 705L 2B	58×53 DIN 5482	28Z× 2m ×30P GB3478.1	195	245	290	245	180	171			B
EP 706L 2B	70×64 DIN 5482	34Z× 2m ×30P GB3478.1	250	325	360	292	200	225			B
EP 707L 2B	80×74 DIN 5482	39Z× 2m ×30P GB3478.1	280	314	348	348	230	295			B
EP 709L 2B	80×74 DIN 5482	39Z× 2m ×30P GB3478.1	280	380	420	348	250	295			B
EP 710L 2B	100×94 DIN 5482	32Z× 3m ×30P GB3478.1	425	460	500	400	300	360			B
EP 711L 2B	100×94 DIN 5482	32Z× 3m ×30P GB3478.1	425
