The use of planetary gear drives in the field of power Transmission is the modern answer to the demand for Compactness constructive simplicity and product reliability. The EP3 series planetary gearbox drives by Ever-Power Transmission Co., Ltd enjoy following features: Output torque Range: 1000 ... 450000 N.m Transmissible Mechanical Power: up to 450 kW Gear Ratios: i=3,3 ... 9000 |  |
Gear Unit Versions: In lineRight angle (with a spiral bevel gear set) Output Configuration: Foot and flange mounted Output shaft: solid with key, spline, spline hollow, hollow with shrink disc Input Configurations Flanged axial piston hydraulic motors Hydraulic orbit motors IEC and Nema motor adaptors Solid input shaft Hydraulic Brake: Hydraulically released parking brake on request Electric Brake: DC and AC type |  |
Planetary drives
Type | Rated torque (Max.) (N.m) | Rated power (KW) | Input speed (Max.) (rpm) | Range of ratios | Design | ||
|
|
| |||||
Inline | |||||||
EP300 | 1000 | 20 | 3000 | 3.3-2700 | 7-800 | 400-9000 | A |
EP301 | 1750 | 30 | 3000 | 3.3-2700 | 7-800 | 400-9000 | A |
EP303 | 2500 | 40 | 3000 | 3.6-2900 | 9-900 | 400-9000 | A |
EP305 | 5000 | 60 | 3000 | 3.6-2900 | 9-900 | 400-9000 | A |
EP306 | 8500 | 75 | 2500 | 3.7-2900 | 9-900 | 400-9000 | A |
EP307 | 12500 | 100 | 2500 | 3.4-2500 | 13-800 | 400-9000 | A |
EP309 | 18500 | 130 | 2500 | 3.4-2500 | 13-800 | 400-9000 | B |
EP310 | 25000 | 150 | 2000 | 3.8-2500 | 40-900 | 400-9000 | B |
EP311 | 35000 | 180 | 2000 | 4-2200 | 18-800 | 400-9000 | B |
EP313 | 50000 | 200 | 2000 | 4-2200 | 18-800 | 400-9000 | B |
EP315 | 80000 | 250 | 1500 | 4-2000 | 70-900 | 400-9000 | B |
EP316 | 105000 | 270 | 1500 | 4-2000 | 50-600 | 400-9000 | B |
EP317 | 150000 | 300 | 1000 | 4-1900 | 70-900 | 400-3000 | B |
EP318 | 200000 | 340 | 1000 | 4-1100 | 200-700 | 400-9000 | B |
EP319 | 300000 | 380 | 500 | 4-1400 | 300-800 | 1000-9000 | B |
EP321 | 450000 | 450 | 300 | 4-1100 | 300-800 | 1000-9000 | B |
 |  |

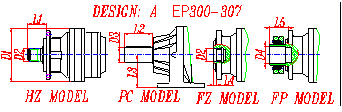

Dimensions | Design | ||||||||||
D1 | D2 D3 | D3 | D4 | L1 | L2 | L3 | L4 | L5 | |||
EP300 | 185 | 40×36 DIN 5482 | 19Z× | 38 | 42 | 61 | 58 | 100 | 14 | 50 | A |
EP301 | 185 | 40×36 DIN 5482 | 19Z× | 50 | 42 | 61 | 82 | 132 | 14 | 50 | A |
EP303 | 245 | 58×53 DIN 5482 | 28Z× | 60 | 75 | 83 | 105 | 160 | 15 | 85 | A |
EP305 | 245 | 58×53 DIN 5482 | 28Z× | 60 | 75 | 83 | 105 | 160 | 15 | 85 | A |
EP306 | 292 | 70×64 DIN 5482 | 34Z× | 80 | 90 | 130 | 130 | 180 | 40 | 115 | A |
EP307 | 348 | 80×74 DIN 5482 | 39Z× | 90 | 100 | 162 | 170 | 200 | 36 | 120 | A |
EP309 | 348 | 80×74 DIN 5482 | 39Z× | 100 | 120 | 231 | 165 | 225 | 82 | 245 | B |
EP310 | 400 | 100×94 DIN 5482 | 32Z× | 110 | 130 | 290 | 210 | 250 | 95 | 290 | B |
EP311 | 428 | 100×94 DIN 5482 | 32Z× | 120 | 135 | 320 | 210 | 280 | 88 | 190 | B |
EP313 | 445 | 120×3 DIN 5480 | 39Z× | 140 | 145 | 357 | 200 | 280 | 81 | 235 | B |
EP315 | 542 | 150×5 DIN 5480 | 29Z× | 160 | 180 | 429 | 240 | 315 | 98 | 260 | B |
EP316 | 670 | 170×5 DIN 5480 | 33Z× | 180 | 180 | 275 | 260 | 400 | 145 | 265 | B |
EP317 | 695 | 200×5 DIN 5480 | 39Z× | 200 | 260 | 352 | 260 | 415 | 152 | 318 | B |
EP318 | 800 | 220×5 DIN 5480 | 43Z× | 250 | 220 | 340 | 330 | 500 | 155 | 305 | B |
EP319 | 940 | 260×5 DIN 5480 | 51Z× | 280 | 350 | 470 | 380 | 550 | 210 | 440 | B |
EP321 | 1100 | 300×8 DIN 5480 | 59Z× | 340 | 390 | 500 | 540 | 650 | 250 | 440 | B |
行星齿轮箱|行星齿轮|齿圈|太阳轮|行星保持架
Slew drives The EP7 series slew drives by Ever-Power Industry Co., Ltd enjoy following features: Output torque Range:1000 ... 80000 N.m Gear Ratios: i=3,3 ... 3000 Support: slew support (with Flange mounted) Electric Brake:DC and AC type Output shaft: splined or with integral pinion. Output shafts supported by heavy duty capacity bearings Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors, IEC electric motors Hydraulic motor options:Pressure relief valve, Over center valve, parking brake on request Type Max. torque (N.m) Range of ratios (i) Max. Input speed (rpm) Braking torque (N.m) Design Excavator Crane EP 1000 1200 3.38-7.2 2000 50-400 A EP 1800 2400 3.38-7.2 2000 50-400 A EP 2500 3500 12-44 3000 50-400 A EP 5000 6500 12-44 3000 50-400 A EP 5000 6500 12-44 3000 50-400 B EP 7500 10000 13-44 3000 400-1000 B EP 9000 15000 13-43 3000 400-1000 B EP 12000 20000 14-47 3000 400-1000 B EP 18000 30000 14-45 2500 400-1000 B EP 20000 35000 14-45 2000 400-1000 B EP 40000 55000 50-300 2000 400-1000 B EP 70000 80000 52-320 2000 400-1000 B Type Dimensions Design D1 D2 D3 D2 D3 D4 D5 D6 L1 M Z EP 40×36 DIN 5482 19Z× 150 195 220 185 -- 31 Module and number of teeth of pinion please ask A EP 40×36 DIN 5482 19Z× 150 195 220 185 -- 31 A EP 58×53 DIN 5482 28Z× 175 245 272 245 -- 41 A EP 58×53 DIN 5482 28Z× 175 245 272 245 -- 41 A EP 58×53 DIN 5482 28Z× 195 245 290 245 180 171 B EP 70×64 DIN 5482 34Z× 250 325 360 292 200 225 B EP 80×74 DIN 5482 39Z× 280 314 348 348 230 295 B EP 80×74 DIN 5482 39Z× 280 380 420 348 250 295 B EP 100×94 DIN 5482 32Z× 425 460 500 400 300 360 B EP 100×94 DIN 5482 32Z× 425 460 500 428 300 345 B EP 120×3 DIN 5480 39Z× 400 510 560 445 340 420 B EP 150×5 DIN 5480 29Z× 470 600 640 542 370 465 B If you want any more details, please do not hesitate to ask! 行星齿轮箱|行星齿轮|齿圈|太阳轮|行星保持架 Wheel drives, Track drives The EP6 series wheel drives and EP4 series track drives by Ever-Power Transmission Co., Ltd enjoy following features: Output torque Range:1000 ... 220000 N.m Gear Ratios: i=3 ... 250 Support: rotating housing flange to fit wheels, drums and tracks Hydraulic motor options:Pressure relief valve, Overcenter valve, parking brake on request Others:Possibillty of having manual disengaging, the vehicles can be towage Type Max. torque (N.m) Range of ratios ( i ) Max. Input speed (rpm) Braking torque (N.m) Wheel drives Track drives Wheel drives Track drives EP EP 800 1000 4.77 1000 200-250 EP EP 1750 2200 6.2 1000 250-350 EP EP 4000 5000 12.4-25.8 3000 ----- EP EP 4000 4000 15.4-40 3000 220-310 EP EP 7000 10000 22-53 3000 220-310 EP EP 12000 18000 30-173 3000 250-800 EP EP 17000 23000 33-122 3000 300-600 EP EP 23000 30000 33-145 3000 300-600 EP EP 30000 36000 20-113 2500 300-800 EP EP 36000 45000 41-173 2000 300-800 EP EP 45000 60000 81-142 2000 400-800 EP EP 60000 85000 108-156 2000 600-1000 Wheel drives Track drives Dimensions D1 D2 D2 D3 D3 D4 D5 D6 D7 D8 (Wheel drives) D8 (Track drives) L1 L2 EP EP 195 175 155 160 18 200 M10×1.5 n=8 M12×1.0 n=8 M10×1.5 n=8 72 48 EP EP 230 200 180 190 210 230 M10×1.5 n=8 M12×1.0 n=8 M10×1.5 n=8 72 73 EP EP 190.5 165.1 133.35 200 241.3 279.4 5/ 1/ 1/ 105.9 145 EP EP 270 230 190 200 240 280 M16×2 n=8 M20×1.5 n=8 M20×1.5 n=8 72 128 EP EP 270 230 190 220 260 300 M16×2 n=12 M20×1.5 n=8 M16×2 n=16 72 158 EP EP 330 300 270 280 330 370 M16×2 n=18 M22×1.5 n=10 M16×2 n=18 115 190 EP EP 380 285 240 320 380 410 M20×2.5 n=20 M18×1.5 n=20 M16×2 n=20 82 230 EP EP 380 285 240 350 400 435 M20×2.5 n=20 M20×1.5 n=16 M20×2.5 n=16 91 235 EP EP 375 340 300 350 400 435 M20×2.5 n=20 M22×1.5 n=16 M20×2.5 n=16 91 253 EP EP 425 325 290 410 455 490 M20×2.5 n=24 M22×1.5 n=24 M20×2.5 n=24 110 265 EP EP 425 325 290 410 455 490 M20×2.5 n=24 M22×1.5 n=24 M20×2.5 n=24 110 280 EP EP 500 460 420 460 510 550 M20×2.5 n=24 M22×1.5 n=24 M20×2.5 n=24 130 315 行星齿轮箱|行星齿轮|齿圈|太阳轮|行星保持架 Tel: 0086-571-85865398 Fax: 0086-571-85865066 E-mail: export@power-transmission.com
Friend Links:marine gearbox Helical Gear locking assembly qd bush gear reducer tractor starter door operators electric gate openers humate fertilizers organic humatesEP7 Series
Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors, IEC electric motors
