PTO SHAFTS CATALOG

PTO SHAFTS  DETAILS

Products ranges:

     WS series joint couplings, SWP series joint couplings, PTO shafts for agricultural machineries, engineering machineries, automobiles, and industrial heavy duty transmission shafts. The products are widely used in machineries, metallurgical industries, chemical engineering, agricultural machineries and automobile industry.

Universal joints	Steering joint Assembly	Industry drive shafts
trcuk driveline	PTO shafts	Heavy duty drive shafts

Product # in picture	Description
1	Spring tension pin for OT
2	Inner yoke for outer tube
3	Outer tube specify length
4	Inner tube specify length
5	Spring tension pin for IT
6	Inner yoke for inner tube
7	Cross
8	Push pin set
9	Outer yoke with quick coupler

PTO SHAFTS CATALOG

PTO SHAFTS

PTO SHAFTS  50 PTO SHAFTS 130－140 PTO SHAFTS 125



PROTECTION COVER	LENGTHEN STUBBING	MODEL 30	MODEL EXCAVATOR



MODEL COUPLING 50 MODEL COUPLING 30 MODEL HEX. INVOLUTE



MODEL HEX. INVOLUTE	MODEL SMALL ORCHARD STUBBING	MODEL SMALL ORCHARD STUBBING	MODEL Ⅰ COUPLING	MODEL Ⅱ COUPLING

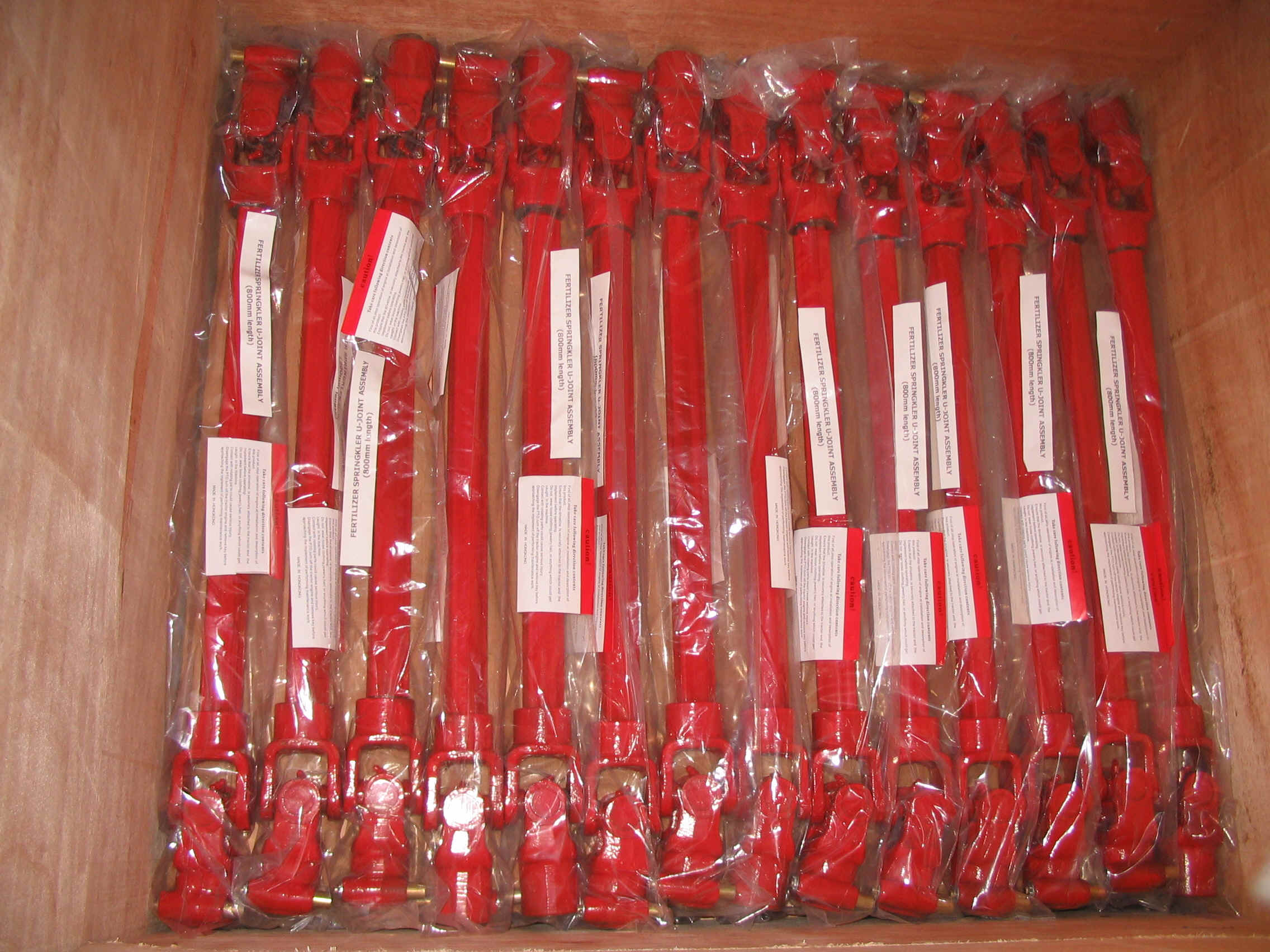

PTO shafts Before shipment

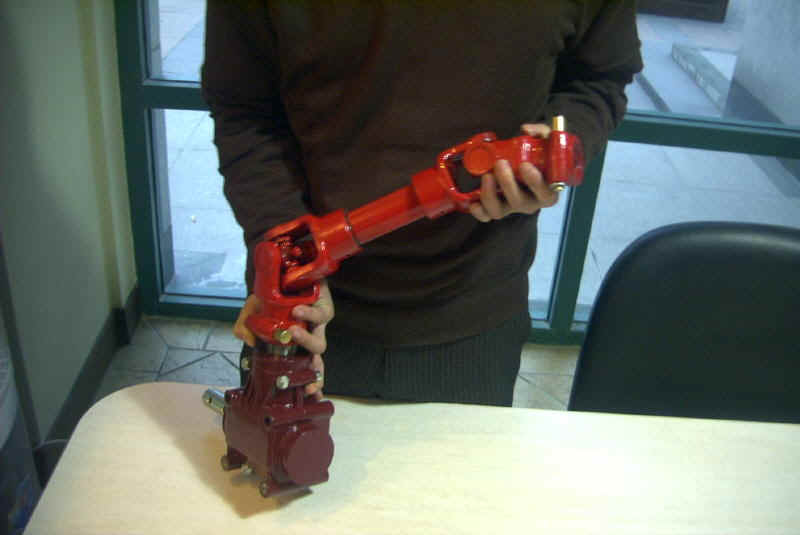

PTO SHAFTS INSTALLED WITH GEARBOXES

PTO SHAFTS CATALOG

FOR OTHER PARTS AND GEARBOXES DIMENSION, PLEASE MAILTO: shen@china-reducers.com
