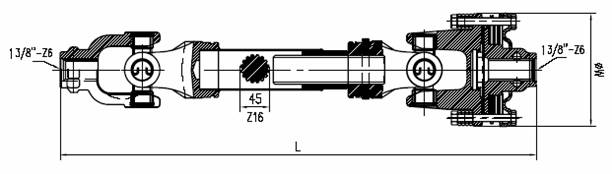

PTO DRIVE SHAFT

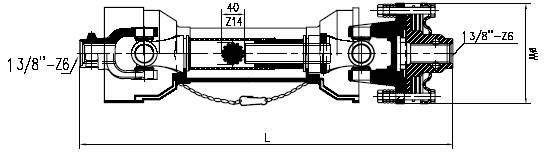

★  Clutch U-joint ass’y











No.

Series No.

L

M

N

D

SPLINE(Z-m-a-Ds)

W



1

HZPT-YL160

620~

74.6



27

30-26-6-6(Rectangular spline)

160

2

HZPT-38HP-000

620~

72.9



28

14-2.65-30-40

180

3

HZPT-YL03-000

700~

106.3



30.18

14-2.65-30-40

180

4

HZPT-50HP-000

750~



57

32

14-2.65-30-40

180

5

HZPT-90HP-000

750~

106.3



34.93

16-2.5-20-45

180

6

HZPT-100HP-000

750~

105.6



38

16-2.5-20-45

180

7

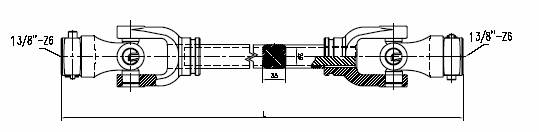

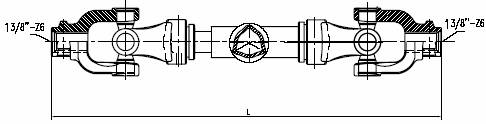

★  Single U-joint ass’y













No。

Series No.

L

U-Joint

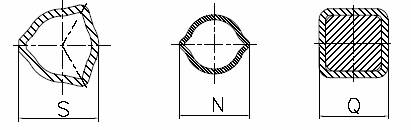

S(inner/outer)

N(inner/outer)

Q(inner/outer)

1

HZPT-GKN001

600~

23.8X61.3



41.5/49



2

HZPT-YL03-001

600~

30.18X106.3

44.56/51.15





3

HZPT-38HP-001

600~

28X80





28/35

4

HZPT-50HP-001

600~

32X57

Spline(14-2.65-30-40)

5

HZPT-90HP-001

600~

34.93X106.3

Spline(16-2.5-20-45)

6

HZPT-100HP-001

720~

38X105.6

Spline(16-2.5-20-45)

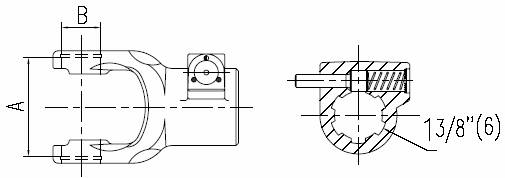

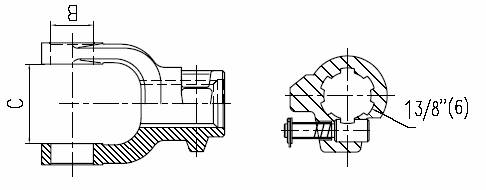

★  Quick release yokes









No。

Series No.

A

B

C-3

Z

1

HZPT-20.10.00

61.3

23.82



1 3/8’’-6

2

HZPT-21.10.00

74.6

27



1 3/8’’-6

3

HZPT-K-160.29.7

72.9

28



1 3/8’’-6

4

HZPT-K-160

72.9

28



35-29-6-6

5

HZPT-A-160

72.9

28



38-32-6-6

6

HZPT-38HP.1

80

28



1 3/8’’-6

7

HZPT-YL03.1

106.5

30.18



1 3/8’’-6

8

HZPT-50HP.1



32

57

1 3/8’’-6

9

HZPT-90HP.1

106.5

34.93



1 3/8’’-6

10

HZPT-K-400.29.7

99

35



1 3/8’’-6

11

HZPT-K-400

99

35



35-29-6-6

12

HZPT-A-400

99

35



38-32-6-6

13

HZPT-100HP.1

105.6

38



1 3/8’’-6

















★  Friction clutches





No。

Series No.

B

A

C-3

W

L

Plate(磨擦片) QTY

1

HZPT-YL160-LHQ

27

74.6



160

156.2

2

2

HZPT-YL03-LHQ.2

30.18

92



180

173.6

2

3

HZPT-YL03-LHQ.4

30.18

106.5



180

173.6

4

4

HZPT-50HP-LHQ

32



57

180

163.2

4

5

HZPT-90HP-LHQ

34.93

106.5



180

177.1

4

6

HZPT-100HP-LHQ

38

105.6



180

177.1

4

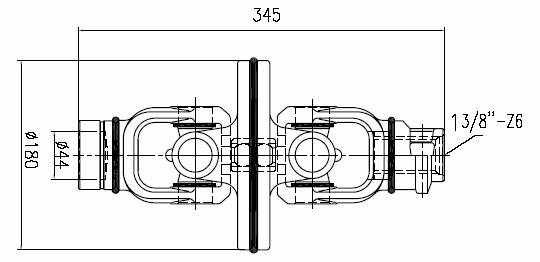

★ Wide angle joint
