C Series Marine Gearbox    CH Series Marine Gearbox

　

CZ Series Marine Gearbox

　

              Model-CZ400

Features Enhanced Model-CZ400

  • Oil controlled clutch engagement.

  • Emergency come home feature.

  • Rubber block drive.

  • Ratios:2:1  2.5:1  3:1  3.5:1  4:1

  • Positive neutral.

  • Both clutches removable when transmission being attached to engine.

  • Identical performance and ratios for forward or reverse motion and convenience for twin-engine fitting.

  • The rated transmission capacity expressed in this catalogue are for the continous duty(operated continuously at full engine governed soeed).

　

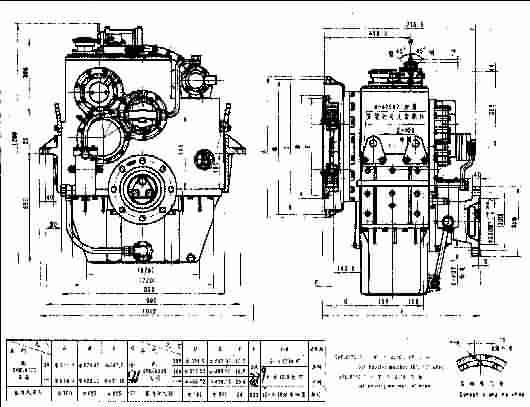

The Outside and Mounting Dimensions

　

C Series Marine Gearbox    CH Series Marine Gearbox
