Chains for machines and equipment of
construction materials(NE, DS, PLS Model)

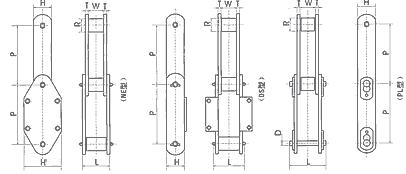

NE Model Lifting Chains
NO Pitch
P Outer Diameter of Roller
R Width
W Diameter of Axle
D Length of Axle
L Thickness of Chain Shield
T Width of Chain Shield
H Thickness of Chain Shield
H' Remarks
NE15 101.6 26.5 27 11.5 70 6 35 /
/
NE30 152.4 36 36.5 15.5 90 8 50 /
/
NE50 152.4 36 36.5 15.5 90 8 50 110
/
NE100 200 44.5 51.8 19.1 120 10 60 125
/
NE150 200 48.5 51.8 22.2 120 10 75 125
/
NE200 250 63.5 67.4 31.75 143 12 90 150
/
NE300 250 63.5 67.4 31.75 146 12 90 150
/
NE400 300 70 75 35 170 16 100 180
/
DS Model Conveying
Chains
NO Pitch
P Outer Diameter of Roller
R Width
W Diameter of Axle
D Length of Axle
L Width of Chain Shield
H Thickness of Chain Shield
T Remarks
DS400 152.4 36 36.5 15.5 90 50 8
/
DS540 152.4 36 36.5 15.5 90 50 8 Double
Rows
DS640 250 48.5 57.6 19.1 120 70 10
/
PL Model Lifting Chains
NO Pitch
P Outer Diameter of Roller
R Width
W Diameter of Axle
D Length of Axle
L Width of Chain Shield
H Thickness of Chain Shield
T Remarks
DS400 152.4 36 36.5 15.5 90 50 8
/
DS540 152.4 36 36.5 15.5 90 50 8 Double
Rows
DS640 250 48.5 57.6 19.1 120 70 10
/
