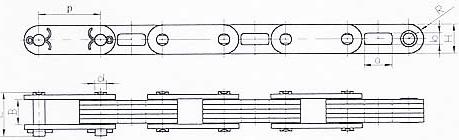

Chains for spreading machines

Chains for 4.5m tyre laying
machine
Pitch Equivalent roller radius
 Pin
Diameter Pin Length Chain
Board
Height Installation size of
scrab Inner
width Breaking Load Weight
P R d L H a b B F q
mm kN kg/m
75 18 14.29 54 36 34 14 31
 200 6.9

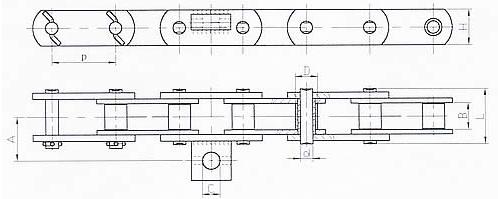

Chains for VGL series Laying
Machine
Pitch Roller diameter Inner
width Pin
Diameter Pin Length Chain
Board Height
 Installation size of scrab
Breaking Load
Weight
P D B d L H A C F q
mm kN kg/m
80 27.94 33.8 15.9
 70.4 45 56.5 22 190 10.25
