Chains for light, medium and heavy
 feeding machines

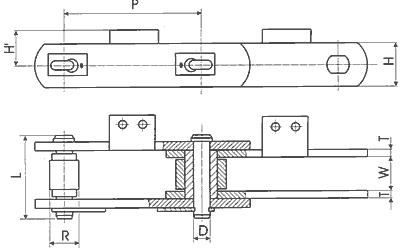

NO Pitch
P Outer Diameter of Roller
R Width
W Diameter of Axle
D Length of Axle
L Width of Chain Shield
H Thickness of Chain Shield
T Plate Width
H' Remarks
D34 Light Plate Chain 200 90 44 20 91.5
50 7 160 Light
SDBF400 250 42 44 21 90 60 8 / Medium
NCW22.2 315 50 54 25 108 70 8 /  /
NCW22.4 315 70 98 36 145 100 14 91 /
NCW14.4 315 140 84 30 152 90 12 /  Heavy
