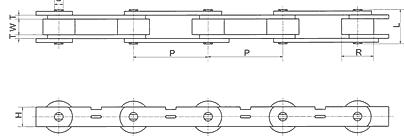

Chains for stairway transmission
£ ̉»¡¢Chains for stairway conveying

NO Pitch
P Outer Diameter of Roller
R Width
W Diameter of Axle
D Length of Axle
L Width of Chain Shield
H Thickness of Chain Shield
T Remarks

FT50 50.8 28.58 31.75 14.27 69.8 41 6.35
FT57 67.73 28 25.4 14.27 51.4 32 4.8
FT100A 100 52 27.5 30 58 60 5
FT100B 101.6 63.5 35 34 70 76 6
FT131 131.28 80 27 14.63 55 40 5
FT133 133.32 80 27 24 54.5 40 5
FT135A 135.46 70 27 14.63 53 50 5
FT135B 135.5 70 27 14.63 57.2 40 5

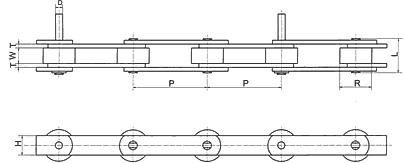

¡¡¶₫¡¢Chains for Escalator

NO Pitch
P Outer Diameter of Roller
R Width
W Diameter of Axle
D Length of Axle
L Width of Chain Shield
H Thickness of Chain Shield
T Remarks
RL133 133.33 70 27 14.63 55 40 5
Rl135 134.5 70 27 14.63 55 40 5
