CZSeries  Marine Gearbox     CH Series Marine Gearbox

C  Series  Marine Gearbox

              Model-C135

Features Enhanced Model-C135

• Oil controlled clutch engagement

• Carburized and hardened gear

• Emergency come home feature

• Rubber block drive

• Ratios: 2.03:1 2.59:1 3.04:1 3.62:1 4.11:1 4.65:1 5.06:1 5.47:1 and 5.81:1

• Equipped with SAE No. 1 or 6135C engine type flywheel housing

• Positive neutral

• Both clutches removable when transmission being attached to engine

• Identical performance and ratios for forward or reverse motion and convenience for twin-engine fitting.

• The related transmission capacity expressed in this catalogue are for the continuous duty (operated continuous at full engine governed speed)

• The said transmission capacity can be increased with intermediate duty (full engine power occupying 50% of the working hours), or with light duty (only occasional usage at full engine power). It is an economic way for users to select a comparatively small-sized gearbox to match the engine. If so, please contact us for further information.

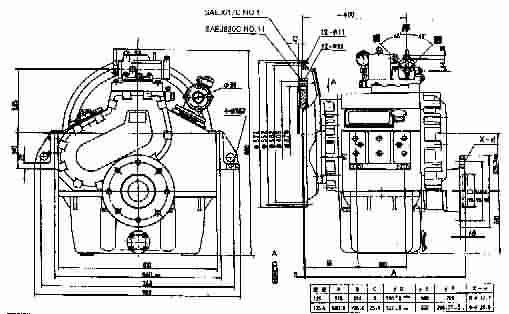

The Outside and Mounting Dimensions
