Steering joint Assembly

Steering joint Assembly

Series No.
L1
L2
Spline 1
D-d-z
Spline 2
D-d-z
U-joint
K
D1
D2

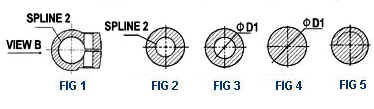

FIG
Application
EPSJ-120 60 60 25.75-24.63-79 25.75-24.63-79 19〜48.2 16.8 　 10.4 1 　
EPSJ-100-1 50 50 25.75-24.63-79 25.75-24.63-79 19.06*48 15.95 　 8.5 1 　
EPSJ-100-2 50 50 24.4-23.05-75 25.75-24.63-79 19.06*48 16 　 10.4 1 　
EPSJ-807 50.5 60.5 25.75-24.63-79 20.4-19.4-36 19*49 15.4 　 8.5 1 　
EPSJ-809 72 72 N/A N/A 19*52.5 N/A 20.7 N/A 3 　
EPSJ-810 69.5 124 N/A N/A 19*49 N/A 20.7 N/A 3 　
EPSJ-811 69.5 69.5 N/A N/A 19*49 N/A 20.7 N/A 3 　
EPSJ-821 72 72 N/A N/A 19*52.5 N/A 22 N/A 3 　
EPSJ-823 29 186 N/A N/A 17*45 N/A N/A N/A 3 　
EPSJ-828 72 123.5 N/A N/A 23.8*61.3 N/A 25.4 N/A 3 　
EPSJ-836 72 72 N/A N/A 19*52.5 N/A 25.4 N/A 3 　
EPSJ-840 40.2 40.2 21.8-20.5-66 17.5-16.5-54 19*49 13.4 　 8.4 1 　
EPSJ-859 71.5 120 N/A N/A 19*52.5 N/A 25.4 N/A 3 　
EPSJ-866 50.5 50.5 25.75-24.63-79 25.75-24.63-79 19*49 15.8 　 8.5 1 　
EPSJ 887 70.5 70.5 25.75-24.63-79 25.75-24.63-79 24.06*78 16.8 　 10.4 1 　
EPSJ-946 50.5 50.5 25.75-24.63-79 25.75-24.63-79 19*49 15.8 　 8.5 1 　
EPSJ-88273 66 98 N/A M26X1.5 18*51 N/A 20 N/A L-3,R-5 　
EPSJ-81 40.5 40.5 N/A N/A 15*40 13.7 22 10.2 1 　
EPSJ-87-1 53.5 43.2 25-21-4 22-20.65-36 20.5*56.5 13.5 　 M10 1 　
EPSJ-87-2 53.5 43.2 22-20.65-36 22-20.65-36 20.5*56.5 13.5 　 M10 1 　
